Food Dumbwaiter Lifts
Technical Specifications
| Product Information | Dumbwaiter technical specification (En) |
| Number Of Stop | Min. 2 stops (Diagonal) Max. 13 stops (Diagonal) |
| Pit Depth | Minimum 1200 mm Maximum 46000 mm |
| Speed | Minimum 0,07 Mt/Sn Maximum 0,40 Mt/Sn |
| Carrying Capacity | Minimum 150 Kg Maximum 250 Kg |
| Cabin İnner Size | Minimum 300x300 mm Maximum 1200x1200 mm |
| Platform Outer Size | Minimum 650X550 mm Maximum 1550x1450 mm |
| Cabin Feature | 304 quality stainless steel |
| Platform Floor Covering | Stainless Steel |
| Motor | Minimum Bonfiglioli (0,75 Kw – 380 Volt) Maximum Bonfiglioli (1,50 Kw – 380 Volt) |
| Control Panel | Arkel ARL 100 |
| Drive System | Hoist Drum Counter Weighted Side Weighted |
| Floor Call Buttons | Buton |
| Steel Structure | Yes No |
| Steel Structure Coating | Galvanized |
| Well Coating Material | No |
| Main Power Requirement | 380 Volt AC, 50 Hz, 3 Phase |
| Floor Door | Minimum 300x300 mm Giyotin Stainless Steel / Manual Maximum 1200x1200 mm Giyotin Stainless Steel / Manual |
| Rail | 50x50x5 |
| Steel Rope | 6.5 mm Steel |

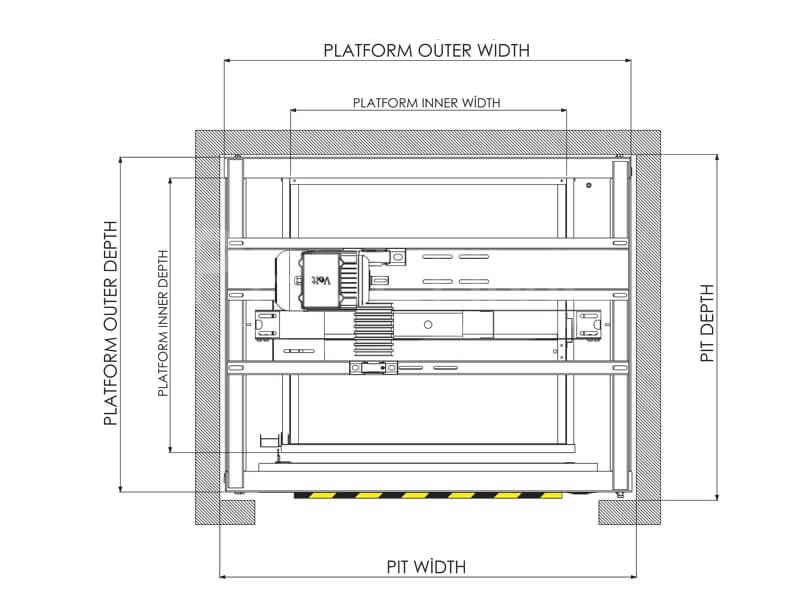

Technical Drawing
