Disabled Elevators
Staircases Type Wheelchair Disabled Platform Lifts
Technical Specifications
| Application | Straight and Turning Stairs / Indoor And Outdoor |
| Drive Type | Gear System-Rope System |
| Carrying Capacity | 225-300kg |
| Running Speed | 0.07 / 0.13 m/s |
| Platform Size | 850 x 1050 mm / (custom size) |
| Rail System | Special Slide System |
| Outputable Slope | 45 degrees |

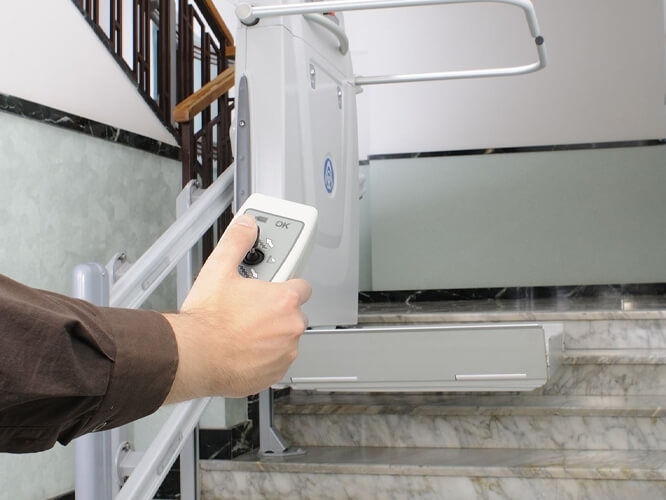

| Call Button | Remote Control / Wall Mount |
| Charging Points | Automatic Charging at Stations |
| Security System | Safety Levers-Crush and Impact Preventing Contact Switches |
| Main Power Requirement | 230 V AC – 50hz – Single Phase |
